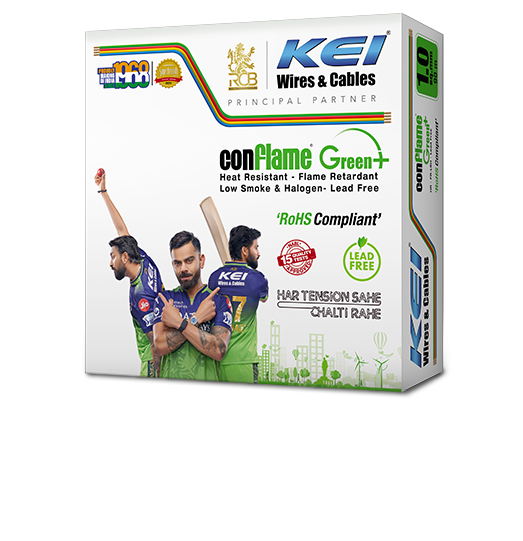

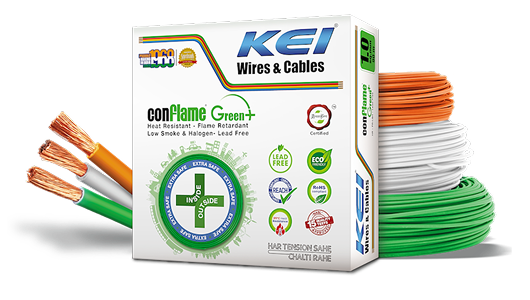

ConFlame Green+ HRFR-LSH

Introduction

KEI’s innovative offering Conflame Green+ is ideal for wiring solutions in multi-storied buildings, hotels, hospitals, commercial establishments and residential complexes. It is shielded by a specially formulated Low Smoke Halogen PVC compound. Conflame Green+ wire is made of sustainable material (RoHS & REACH compliant) and is lead-free, which makes it ECO-friendly. Even its packaging is made with recycled material, which is Bio-degradable. Conflame Green+ insulation retards spread of fire and emits minimum smoke and toxic gases, making it absolutely safe for both inside house and outside environment. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.



Features

  • Min 99.97% Pure Electrolytic Grade Annealed Copper for excellent conductivity.
  • Excellent Heat-Resistant Properties for reliable performance at elevated temperatures.
  • 20% Higher Current Carrying Capacity
  • Maximum Operating Temperature up to 85°C.
  • Eco-Friendly Product with CII GreenPro Certification.
  • Excellent Flame Retardant Properties for enhanced fire safety.
  • Low Smoke Generation and Low Halogen Emission for improved safety during fire conditions.
  • RoHS and REACH Compliant for safer and environmentally responsible wiring.
  • Lead-Free Product for safer and environmentally responsible wiring.
  • Anti-Rodent and Anti-Termite Properties for enhanced cable protection.
  • Critical Oxygen Index (COI) f Minimum 31% for enhanced flame-retardant performance.

Cable Structure

Conductor The conductors, drawn from min 99.97% Pure electrolytic grade copper and annealed and bunched together.
Insulation The bunched conductors are insulated with specially formulated Heat Resistance Flame Retardant Low Smoke & Halogen Compound. During a fire situation, the FR-LSH compound restricts the spread of flame. The smoke emission is also minimal.
Operating Temp. Maximum +85°C (Heat Resistance)
Marking The cables are printed with generic marking ‘CONFLAME Green+’.
Colors Red, Yellow, Blue, Black, Green and Grey.
Standard 90 Meters (Bio degradable) and 180 meters coil pack in protective cartons.
Test Specification Specified Values
Critical Oxygen Index ASTM-D 2863 Minimum 31%
Temperature Index ASTM-D 2863 Minimum 250 °C
Acid Gas Generation IEC 60754 -1 Maximum 20%
Smoke Density Rating ASTM-D 2843 Maximum 60%


Size Dimensions and Ratings

Nominal Cross Sectional Area of Conductor Number/Nominal Dia of wires*[Nom.] Thickness of insulation [Nom.] Overall Diameter Max. Current Rating ** D.C Resistance [Max.] at 20°C
Clipped Direct/Cable Tray Conduit/Trunking
Sq.mm Number/mm mm mm Amps Amps Ohm/km
0.75 24/0.2 0.6 2.8 10 9 26.0
1.00 32/0.2 0.6 3.0 16 14 19.5
1.50 30/0.25 0.7 3.4 21 17 13.3
2.50 50/0.25 0.8 4.1 28 23 7.98
4.00 56/0.3 0.8 4.8 38 31 4.95
6.00 84/0.3 0.8 5.3 48 40 3.30

* The number & diameter of conductor strands are for reference only and governed by conductor resistance.

* The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.

** Conditions apply.

Why ConFlame Green+ (HR-FR-LSH)

  • HR-FR-LSH technology combines heat resistance, flame retardancy, low smoke and low halogen properties for enhanced wiring safety.
  • Min 99.97% electrolytic copper provides excellent electrical conductivity and reliable performance
  • 20% Higher Current Carrying Capacity for improved performance in high-toad applications.
  • Performance up to 85°C supports reliable operation under elevated temperature conditions.
  • Minimum COI of 31% supports excellent flame-retardant performance.
  • Lead-free insulation supports safer and environmentally responsible wiring.
  • Anti-Rodent & Anti-Termite properties help protect the cable from external damage.
  • REACH & RoHS compliance supports the use of safer materials and environmentally responsible wiring.
  • CII GreenPro Certification reflects the product’s environment-friendly credentials.
  • Biodegradable packing materials support more environmentally responsible packaging.
